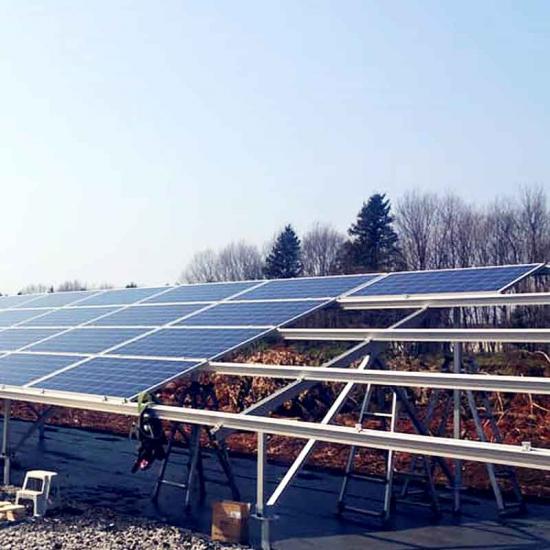

Aluminum Ground Solar Mounting System With Ground Screw Base
Solar Ground Mounting System is typically applied on flat open field ground. Main components are high pre-assembled in our factory, which save lots of your on site installing time and cost. Components are full sides anodized even for small parts, which has a great anti-corrosion effect and long lifetime.
Product Name: Aluminum Ground Solar Mounting System With Ground Screw Base
Description
Ground screw based ground mounting system create robust structure fully utilizing benefits of ground screw, cost competitive while environment friendly, able to cope with harsh conditions like heavy snow load or high wind speed. The solar panels ground mount system don't need to pre-made concrete base, easy for installation. Main components are high pre-assembled in our factory, which save lots of your on site installing time and cost. Components of the ground mounted solar structure are full sides anodized even for small parts, which has a great anti-corrosion effect and long lifetime.
Advantage
Pre-assembled in factory, save the onsite installing time and cost
Light material, easier for transportation
Longer lifetime comparing to steel
10 years warranty and 20 years service life
Component List
Technical Date
| Install site | Open Field |
| Max Wind Speed | ≤60m/s |
| Snow Load | ≤1.4KN/M2 |
| Tilt Angle | ≤45 degree |
| Applicable Module | Framed or frameless |
| Standards | AS/NZS 1170, ASCE 7-10, JIS2017 |
| Material | AL6005-T5, SUS304 |
| Anti-corrosive | Anodized |
| Color | Silver/Black |
| Foundation | Ground screw |
| Warranty | 10 years warranty |
Production Process
