Product Name: Solar Ground Ramming Pile Mounting System
Description

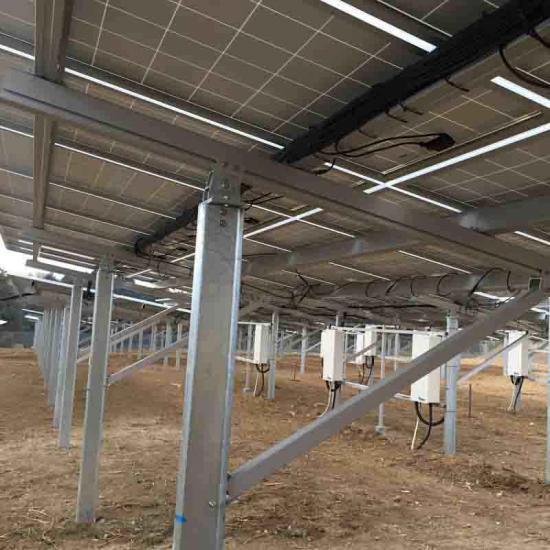

Solar Ramming Pile Ground Mounting System is widely applied to residential, commercial and utility scale PV projects on non-sandy ground. The ground solar panel mounts suits both framed or frameless solar panel installations, especially on uneven terrain. It works for level ground too.
The ramming post of solar ground mount racking eliminates the need of additional excavation work.
C post can be piled into the ground 1-2 meters by pile machine quickly, then mount the pre-assembled aluminum beam, the rail and clamp,etc.
Advantage
Pre-assembled in factory, save the onsite installing time and cost
Eliminates the need of additional excavation work.
10 years warranty and 20 years service life
Component List
Technical Date
| Install site | Open Field |
| Max Wind Speed | ≤60m/s |
| Snow Load | ≤1.4KN/M2 |
| Tilt Angle | ≤45 degree |
| Applicable Module | Framed or frameless |
| Standards | AS/NZS 1170, ASCE 7-10, JIS2017 |
| Material | AL6005-T5, SUS304 |
| Anti-corrosive | Anodized |
| Color | Silver/Black |
| Foundation | Ramming Post |
| Warranty | 10 years warranty |
Production Process
